MAVLab exists to make drone simulation approachable. A learner who wants to understand drones is usually pushed straight into a hard professional stack — ROS/ROS 2, Gazebo/Webots/JSBSim, ArduPilot SITL / PX4 SITL, Docker, Python bridges, MAVProxy, UDP routing, and QGroundControl / Mission Planner configuration — long before they have understood the drone itself.

Learning-order thesis

MAVLab does not compete with professional tools. It changes the learning order:

MAVLab first
  -> understand sensors, attitude, telemetry, flight modes, missions,
     failures, GCS workflows, and simulation state
  -> then graduate into ArduPilot SITL, PX4 SITL, Gazebo, ROS 2,
     Webots, JSBSim, hardware-in-the-loop, and real aircraft

What MAVLab abstracts away at the beginning

• Installing ROS/Gazebo/SITL stacks and building ArduPilot/PX4 locally.
• Running multiple terminals and bridges; debugging UDP endpoints before understanding MAVLink.
• Needing a physical Pixhawk, frame, batteries, RC transmitter, GPS module, telemetry radio, or a safe test field for the first learning loop.

What MAVLab should still teach

• Arm/disarm and flight modes; roll, pitch, yaw, altitude, velocity, GPS, and heading.
• Sensor quality and failures; MAVLink telemetry and command flow.
• QGroundControl connection and mission workflows; manual vs GCS mission control authority.
• Autonomous mission upload/execution; wind, battery, payload, motor, GPS, compass, barometer, and link-loss failures.
• 3D state visualization through the SIM tab; logs, reports, replay, and debrief.

Failure Labs scenarios

• GPS Loss, GPS Drift, Compass Loss, and Barometer offset failures.
• Wind speed, direction, and gust simulation.
• Individual motor failure.
• Unsafe battery drain and heavy payload masses.
• Signal / link loss scenarios.

Project facts

Build, test & assemble the debug package

cd mavlab-android
GRADLE_USER_HOME="$PWD/.gradle" ./gradlew lintDebug testDebugUnitTest assembleDebug

Install to a connected device

adb install -r app/build/outputs/apk/debug/app-debug.apk

CI verifies lint, unit tests, and the debug build. Keep the debug APK under 50 MB.

Connecting QGC

1. Split-screen (on-device): open MAVLab and QGC side-by-side. QGC discovers the vehicle on 127.0.0.1:14550.
2. Local Wi-Fi (cross-device): put the phone and computer on the same Wi-Fi. MAVLab's UDP broadcast auto-links the vehicle to desktop QGC.
3. Ensure the GCS System ID is 255 (default) and MAVLab is 1 to prevent system conflicts.

Test environments

Environment A — split-screen Android

1. Enable developer options and split-screen/multi-window for all apps.
2. Open MAVLab in the top half, QGroundControl in the bottom half.
3. QGC listens on localhost port 14550 and discovers the MAVLab broadcast.

Environment B — cross-device local Wi-Fi

1. Connect the Android device and a desktop running QGC to the same Wi-Fi router/hotspot.
2. Ensure no firewall blocks UDP port 14550.
3. Launch both; the UDP broadcast auto-registers the drone on desktop QGC.

Acceptance checklist

Mission upload protocol flow

QGC MISSION_COUNT          -> MAVLab validates count, clears upload state
MAVLab MISSION_REQUEST_INT -> QGC MISSION_ITEM_INT (per sequence)
... repeat until all items received ...
MAVLab loads mission into MissionEngine / PhysicsSimulationEngine
MAVLab MISSION_ACK(ACCEPTED) -> Mission screen shows uploaded mission

Supported mission messages: MISSION_COUNT, MISSION_ITEM_INT, legacy MISSION_ITEM, MISSION_REQUEST_LIST, MISSION_REQUEST_INT, legacy MISSION_REQUEST, MISSION_CLEAR_ALL, MISSION_SET_CURRENT, MISSION_ACK, MISSION_CURRENT, and MISSION_ITEM_REACHED. Outbound telemetry also includes HEARTBEAT, ATTITUDE, GLOBAL_POSITION_INT, GPS_RAW_INT, VFR_HUD, SYS_STATUS, BATTERY_STATUS, COMMAND_ACK, and PARAM_VALUE. Inbound command handling covers SET_MODE, PARAM_REQUEST_LIST, PARAM_SET, COMMAND_LONG (arm/disarm, takeoff, land), and SET_MESSAGE_INTERVAL.

MAVLab mimics ArduPilot by default and must not auto-renumber its vehicle system ID during a live link. A MAVLink system ID is part of vehicle identity; silently changing it while a GCS is connected leaves QGC with stale vehicle state (heartbeat visible, but mission upload behaves as if nothing is connected).

Recommended defaults

Port mapping

On the first GCS heartbeat MAVLab records the sender IP/port and switches from broadcast to targeted unicast to reduce congestion. 0.0.0.0 is a bind address only — never a send target.

Guardrails & invariants

• Self-heartbeat guard: inbound packets whose sender System ID equals the local vehicle System ID are ignored (prevents parsing looped-back broadcasts as GCS commands).
• Heartbeat rate: HEARTBEAT (#0) broadcast at 1 Hz.
• Connection warmup: gcsConnected = true only after ≥ 3 s of continuous GCS heartbeats.
• Connection timeout: > 15 s without GCS heartbeats marks the link disconnected.
• Failsafe reversion: losing the GCS link during AUTO reverts authority from GCS_MISSION to safety defaults (hold/RTL) to prevent flyaways.

Conflict handling — diagnose, do not self-change

If a colliding heartbeat arrives, MAVLab keeps its vehicle ID stable and surfaces a diagnostic warning instead of renumbering:

MAVLink identity conflict
MAVLab vehicle SYSID is 1.
QGC heartbeat is also using SYSID 1.
Set QGC MAVLink System ID to 255 and reconnect.
Do not change MAVLab vehicle SYSID unless running multiple simulated vehicles.

Inbound commands/mission messages are target-filtered: act only when target_system == vehicleSystemId or target_system == 0 (broadcast where semantics allow). PARAM downloads advertise a stable identity (SYSID_THISMAV=1, MAV_SYSID=1, SYSID_MYGCS=255, MAV_GCS_SYSID=255). Mission upload is blocked with a clear reason (MAV_MISSION_DENIED) while an identity conflict exists.

Recommended QGC setup for the user

1. Open QGroundControl settings -> MAVLink.
2. Set QGC MAVLink System ID to 255.
3. Keep MAVLab Vehicle System ID at 1.
4. Same-phone: QGC UDP 14550, MAVLab bind 14551.
5. Restart/reconnect the UDP link after changing the System ID.

Runtime

• SimulationService starts the shared simulation runtime (foreground service boundary).
• AppRuntime exposes state, failures, missions, MAVLink status, and control commands to Compose screens.
• PhysicsSimulationEngine runs the fixed-rate physics loop and owns autopilot, failures, mission progress, and battery state.

Single source of truth — state flow

Controller input or QGC command
  -> PhysicsSimulationEngine / MissionEngine / Autopilot / FailureInjector
  -> DroneState  (Kotlin StateFlow)
  -> Cockpit + Controller + Mission + SIM + Ops + FlightRecorder

State changes write directly to StateFlow structures inside the engine; AppRuntime exposes them as read-only streams; Compose screens observe them as read-only state, ensuring atomic, unidirectional data flow. The SIM is never animated directly from UI controls.

Control authority model

A priority-based single-writer authority model arbitrates between local input and remote GCS commands.

Manual override: local inputs (disarm, manual land, guided offsets, joysticks) instantly preempt an active GCS_MISSION and shift back to CONTROLLER. Autopilot state writes must verify the active authority before writing to the state flow.

Core modules

Phase order

Phase 0 skeleton & guardrails → Phase 1 QGC/MAVLink proof → Phase 2 physics → Phase 3 controller & telemetry → Phase 4 3D visualization → Phase 5 failures & missions → Phase 6 polish & release.

MAVLab is organized into five primary tabs. Every tab answers one clean question. (Systems is deferred from MVP navigation; its failure/health capability is surfaced as a lightweight subset inside Controller.)

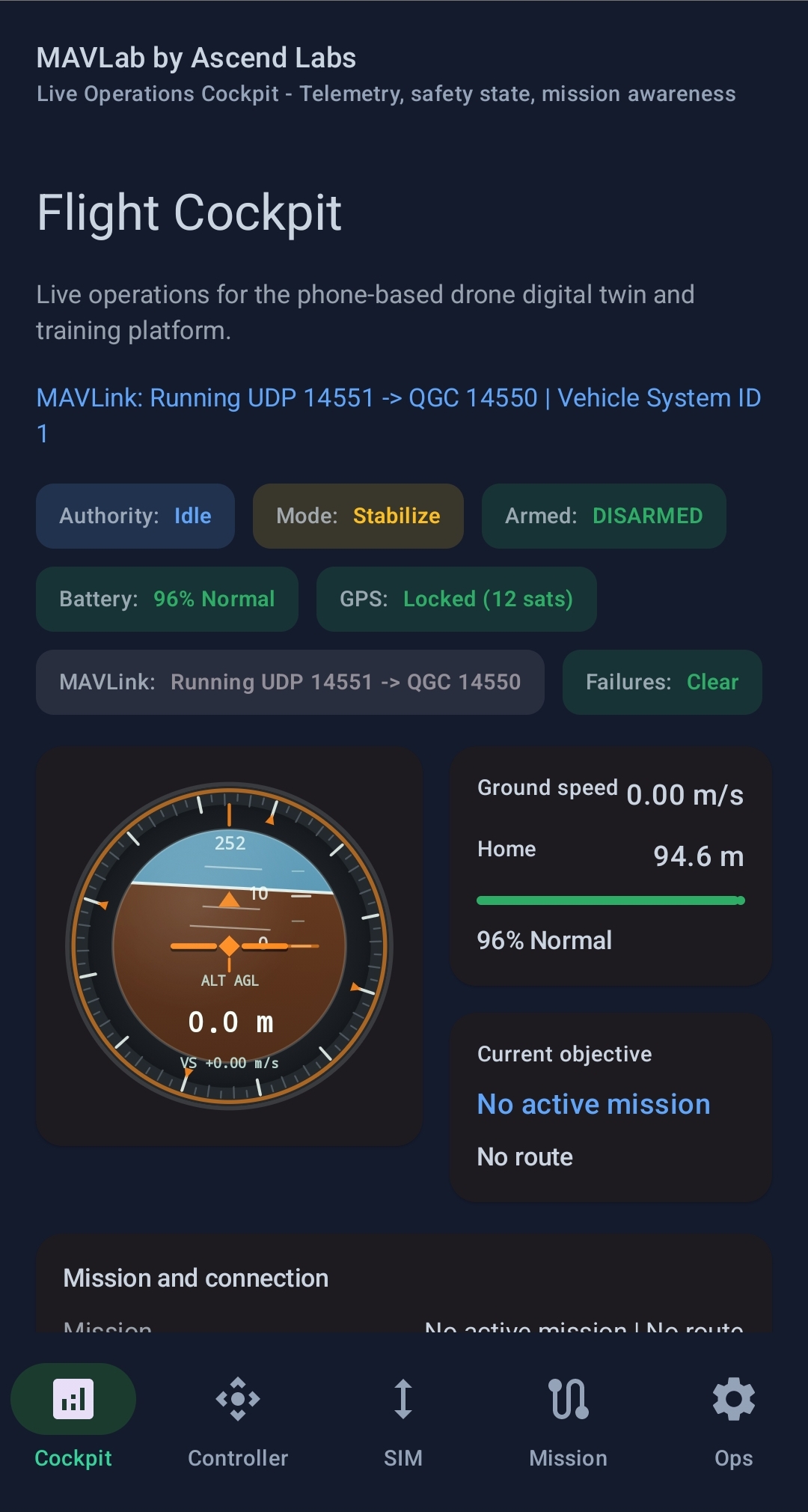

Cockpit

Live flight instrument and authority/status surface: control authority, flight mode, armed state, altitude AGL, ground/vertical speed, heading, battery percent/voltage, GPS fix & satellites, roll/pitch/yaw, throttle, attitude/altitude charts, MAVLink/GCS indicator, mission summary, last inbound message and last ACK, plus essential arm/takeoff/land buttons. It stays glanceable and does not own tuning, failure sliders, or 3D internals.

Controller

Local manual-control surface with an input-source selector (Phone sensors vs Custom input), calibration, tilt visualizer, throttle/roll/pitch/yaw controls, and an Advanced test inputs section (motor failure, GPS loss, wind preset, reset). Every Controller input routes through the simulation engine — never animating the model directly. It also hosts the Drone Sound Lab (see §9).

Mission

Inspect, start, clear, and monitor uploaded or demo missions: source, waypoint list, active waypoint, progress count, AUTO start, clear, load demo, re-upload replacement, and mission-protocol status (upload in progress/accepted/rejected, last sequence). GCS missions drive the same simulation state as manual flight.

SIM

The visual digital twin. Loads drone.glb, maps east/north/altitude to position and pitch/yaw/roll to rotation, animates propellers from motor state, and overlays a HUD (authority, mode, arm state, altitude, speed, battery, GPS, motor RPM bars, active waypoint, failure warnings). Default is a chase/inspection view: the drone stays readable near center while the world/path/camera communicate movement. Bench and world/map views are future modes.

Altitude instrument (SIM HUD spec)

A bottom-center circular aviation-style indicator drawn in Compose Canvas: dark bezel and tick ring, blue-sky/brown-ground artificial horizon with white horizon line, a fixed orange drone reference marker, an altitude scale, and readouts for ALT AGL, altitude (1 dp), and vertical speed (signed, 2 dp). It binds to DroneState only — never to 3D model transforms — and reacts to roll/pitch with a low-altitude warning band.

Ops

Technical operations & diagnostics: MAVLink UDP status, bind port, QGC destination, system/component IDs, last inbound message, last ACK, identity health, flight-log history/sharing, QGC troubleshooting, replay onboarding, and the release QA checklist.

3D model node contract

The app is model-agnostic as long as the GLB follows a stable node-name and pivot contract (e.g. Prop_FL/FR/RL/RR, Motor_FL/FR/RL/RR, optional PropBlur_*, Battery, GPSModule, PayloadMount, CameraGimbal). Missing optional nodes degrade gracefully and are reported in diagnostics rather than crashing. Performance targets: GLB < 5 MB where possible, < ~50k triangles.

Arming creates a new session; disarming closes it, computes flight-envelope stats, and writes the report. Sessions are stored in app-private storage (no storage permission needed, works offline):

filesDir/mavlab/flights/{session_id}/
  manifest.json   # session start/end, duration, app/schema version, max alt/speed, battery used, event counts
  telemetry.csv   # ~5 Hz time-series telemetry
  events.jsonl    # one JSON object per line: timeline events
  mission.json    # snapshot of the uploaded/demo mission
  report.md       # human-readable markdown flight summary + safety review

Telemetry CSV (v1.5 schema highlights)

Includes session_id, control authority, armed state, flight mode, lat/lon, north/east position, altitude AGL, ground/vertical speed, headingDegrees, roll/pitch/yaw, throttle, battery percent/voltage, gpsFixType, satellite count, motor RPM (when available), activeWaypoint, and failureFlags.

Events (JSONL)

Sparse, human-readable: recording start/stop, arm/disarm, takeoff/land, mode changes, authority changes, mission upload lifecycle, waypoint reached, mission completion, failure injection/restoration, GCS connection, and battery/failsafe warnings.

Markdown report

Each session auto-generates report.md summarizing dates/durations and control authorities, mission parameters and waypoint success ratios, calculated flight envelopes (e.g. max altitude), chronological event timelines, and safety observations (e.g. "GPS was lost during flight — practice altitude-hold recovery..."). Reviewable in-app via the report viewer dialog.

Sharing

Android FileProvider packages session files and exposes them through standard Sharesheet intents — share the complete flight folder (CSV, manifest, events, mission, report) to email, drive, or chat.

MAVLab sound should evolve from a demo feature into a digital-twin training signal: make the drone feel alive, make RPM/throttle understandable by ear, make failures/payload audible, make the sound physically explainable, and eventually connect sound, telemetry, and AI debrief.

Architecture (kept replaceable)

DroneState + FailureState
  -> DroneSoundModel
  -> DroneSoundController
  -> Android audio backend
  -> Controller / SIM / Ops surfaces

Current target: V2 — Controller-tunable per-motor adaptive sound

Four SoundPool motor streams, each following its motor's RPM; per-motor mix and roughness sliders; sound test mode (audio-only while disarmed); low/critical battery cues. Controls live in Controller → Drone Sound Lab: sound enabled, master volume, per-motor mix, roughness, alerts, test mode, test RPM, reset. Optional assets: drone_motor_loop.wav, drone_motor_rough_loop.wav, drone_warning_beep.wav, drone_motor_sputter.wav.

Version roadmap

V3 acoustic model (blade-pass frequency)

BPF = blade_count * RPM / 60
2-blade prop @ 6000 RPM -> BPF = 200 Hz
harmonics: 200, 400, 600, 800 Hz ...

V3 keeps V2 loops but adds procedural layers (blade-pass harmonics, filtered prop-wash noise, motor/ESC whine, maneuver roughness, descent turbulence), with AudioTrack streaming for the procedural layer alongside SoundPool cues. Later versions add spatial audio (distance attenuation, panning, Doppler), drone acoustic profiles and training drills, and finally a native Oboe engine feeding AI debrief features.

MAVLab's core learning loop runs from one Android-first app. You do not need ROS, Gazebo, ArduPilot SITL, PX4 SITL, Docker, Python bridges, cloud servers, or Linux networking knowledge to start.

Install

1. Install MAVLab on an Android 8.0+ phone.
2. Install QGroundControl if you want ground-station integration.
3. Open MAVLab and complete onboarding.
4. Use the guided surfaces: Cockpit, Controller, Mission, SIM, and Ops.

QGroundControl

For same-device use, run MAVLab and QGC in split-screen — MAVLab broadcasts MAVLink telemetry over UDP and QGC should discover it automatically. For desktop QGC, put phone and desktop on the same Wi-Fi; MAVLab broadcasts to common LAN destinations and UDP port 14550.

Build from source

cd mavlab-android
GRADLE_USER_HOME="$PWD/.gradle" ./gradlew lintDebug testDebugUnitTest assembleDebug
adb install -r app/build/outputs/apk/debug/app-debug.apk

Troubleshooting

• If QGC does not connect, restart QGC and MAVLab, then confirm both are on the same network.
• If the phone controller is unavailable, use the manual fallback sliders in the Controller tab.
• If the 3D model does not render smoothly, keep using Cockpit/Mission — the simulator keeps running.

MAVLab is designed for classroom drone-systems lessons without physical aircraft and without making students begin with the hardest simulation stack. Learners understand drone behaviour first, then later graduate into ROS, Gazebo, ArduPilot/PX4 SITL, Webots, JSBSim, hardware-in-the-loop, and real aircraft.

Teaching philosophy

1. Show the concept in MAVLab.
2. Let students operate it from a phone.
3. Connect the concept to QGroundControl/MAVLink.
4. Only then explain how it appears in ArduPilot SITL, PX4 SITL, ROS, Gazebo, or real aircraft.

Recommended lesson order

1. Your First Flight · 2. Understanding MAVLink · 3. Phone as Controller · 4. Flight Modes Explained · 5. PID Control · 6. Sensors · 7. Failsafes.

Classroom format

• Students run MAVLab on their phones; QGC in split-screen or on an instructor desktop.
• Open each session with the problem MAVLab solves: the concepts can be learned first in one friendly app.
• Use Failure Lab only after students understand normal flight.

Assessment ideas

• Explain the difference between Stabilize, Alt Hold, Guided, Loiter, Auto, and RTL.
• Identify which telemetry messages QGC uses for attitude, position, GPS, and battery.
• Demonstrate GPS loss and explain why Auto/Loiter degrade.
• Load a demo mission and describe waypoint progression.
• Compare behavior with and without wind.

v1.5 functional test matrix

Device coverage

Android 8 / 11 / 13 / 15 (devices or emulators), a low-end phone for sensor-fallback testing, and a Pixel-class phone for the performance baseline.

Protocol & lifecycle tests

• Same-phone split-screen QGC; desktop QGC on the same Wi-Fi; Wi-Fi off/on; explicit QGC IP; subnet broadcast.
• App background/restore; screen rotation; screen off/on; QGC restart while MAVLab runs; MAVLab restart while QGC runs; two MAVLab devices on one network.
• 3D performance: Twin/SIM does not stutter on a low-cost phone; props don't cause excessive recomposition; SceneView samples latest state rather than collecting 100 Hz UI updates.

Release QA

Clean install + onboarding, demo mission + AUTO, inject GPS loss + verify Alt-Hold failsafe, confirm QGC telemetry, run one hour with no crash/ANR, and confirm the debug APK is under 50 MB.

1 · Setup & onboarding (1 min)

Launch MAVLab. Open with the problem statement (beginners get pushed into ROS/Gazebo/SITL/Docker/ MAVProxy/networking; MAVLab is the friendly first layer). Walk the tabs — Cockpit, Controller, SIM, Mission, Ops — then tap Get Started.

2 · Pre-flight & local manual control (2 min)

Controller → Arm Vehicle → throttle up or Takeoff (alt hold at 10 m). Switch to SIM to watch takeoff/hover. Back in Controller, enable Phone Sensor Control and tilt the phone; show the SIM mimicking tilt; toggle sensors off to return to joysticks.

3 · QGC connection & AUTO mission (3 min)

Connect QGC (split-screen or desktop on the same Wi-Fi). Plan a short 3-waypoint mission in QGC and Upload; verify it appears in MAVLab's Mission tab. Trigger AUTO; watch the SIM fly, noting active-waypoint rings and the Mission index updating.

4 · In-flight failures & recovery (2 min)

Ops → Failure scenario catalog → GPS Loss (Jamming). Point out the ● ACTIVE badge; in Cockpit the GPS lock drops from 3D Fix to No Fix (red); observe QGC's GPS warning; execute a safe Land to recover.

5 · Post-flight review & export (2 min)

Disarm. In Ops, open the completed session → View Report; point out the timeline (armed → GPS failure → land) and the safety warning. Tap Share to show the Sharesheet ready to export the CSV and markdown files.

What's new in v1.5

Flight logging & reporting

• Rich telemetry CSV with session_id, gpsFixType, headingDegrees, activeWaypoint, failureFlags.
• Auto-generated report.md: dates/durations, authorities, mission & waypoint ratios, flight envelopes, event timelines, and safety observations.
• In-app report viewer dialog and Sharesheet export of the full flight folder.

Failure Lab upgrades

• Collapsible scenario catalog; real-time active-failure count badges; per-chip ● ACTIVE tags.

Onboarding & diagnostics UI

• Replayable first-launch onboarding; color-coded MAVLink/QGC link-state indicators.

Upgrade

./gradlew installDebug
# then open the app, follow onboarding, and use the Ops tab
# for flight logs, sharing, and the failure catalog

v1.5 phase acceptance (snapshot)

MAVLab is an Android-first drone education simulator. Keep changes focused, testable, and useful for students learning flight systems.

Local setup

1. Install Android Studio or the Android SDK command-line tools.
2. Install Android SDK 35 and Java 17.
3. Open mavlab-android/ as the Android project.
4. Build & test:

   cd mavlab-android
   GRADLE_USER_HOME="$PWD/.gradle" ./gradlew lintDebug testDebugUnitTest assembleDebug

Guidelines

• Keep simulator behavior deterministic where possible.
• Add JVM tests for physics, controller mapping, mission, and failure logic.
• Avoid network-dependent runtime features unless there is an offline fallback.
• Keep the APK under 50 MB.
• Do not commit local SDK paths, build outputs, or device-specific files.

Existing test anchors include MavlinkMessageBuilderTest, MissionUploadSessionTest, MissionEngineTest, ControlAuthorityTest, DroneModelControllerTest, MissionSnapshotCodecTest, MissionUploadStatusTest, and FlightRecorderTest. Licensed under MIT.

The repository ships three tracked binary assets. All are referenced here as local paths only.
